How to fit an integrated bar and stem

Fitting your integrated bar and stem is simple with the right tools and a bit of care.

Tools you’ll need

• Torque wrench

• 6mm Allen bit

• 4mm Allen bit

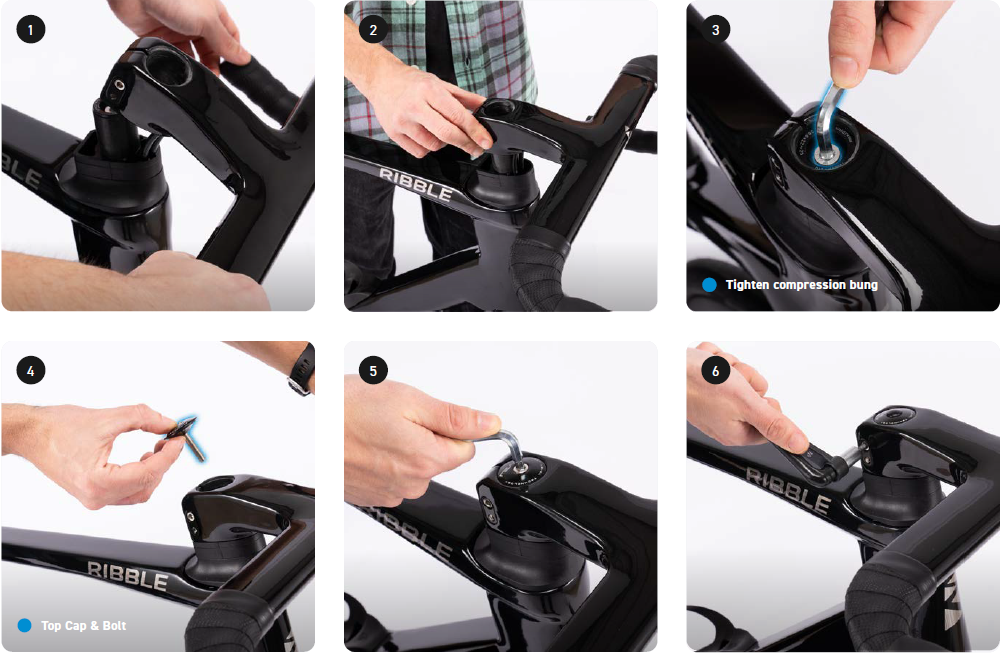

Step 1: Remove top fittings
Take off the bolt, top cap, and 2mm spacer from the top of the fork steerer.

Step 2: Fit the bar assembly

• Slide the bar assembly back onto the fork steerer

• Make sure it’s seated correctly

• If it doesn’t slide on easily, slightly loosen the compression bung bolt at the top of the steerer

Step 3: Secure the compression bung

• Apply downward pressure until the bung grips

• Tighten with the torque wrench and 6mm Allen bit to 8Nm

Step 4: Re-fit top fittings

• Reinstall the 2mm spacer, top cap, and bolt

• Tighten the bolt until all play is removed from the headset

• To check, apply the front brake and gently rock the bike back and forth

Step 5: Tighten the stem bolts

• At the rear of the stem, tighten both bolts evenly

• Use the torque wrench with a 4mm Allen bit to 6Nm

Your integrated bar and stem should now be securely fitted and ready to ride.
